Oura Tanks

Project Overview

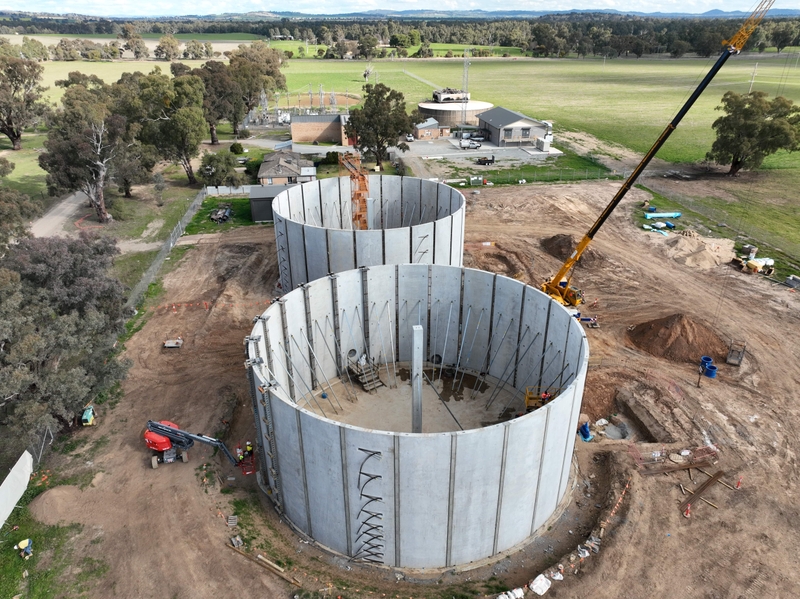

Fortec was engaged by Quay Civil to design the concrete base and walls, and supply and install post tensioning services to 2 new 4.5ML tanks at the new Goldenfields Water County Council Reservoirs project in Wagga Wagga, New South Wales.

The scope of work included the design and detailing of the tank base (slab and ring beam) and tank walls, supply of all materials and labour for the installation, stressing and grouting of post tensioning tendons.

Fast Facts

  • CLIENTQuay Civil
  • LOCATIONWagga Wagga, NSW
  • YEAR OF COMPLETION2024

Scope of Works

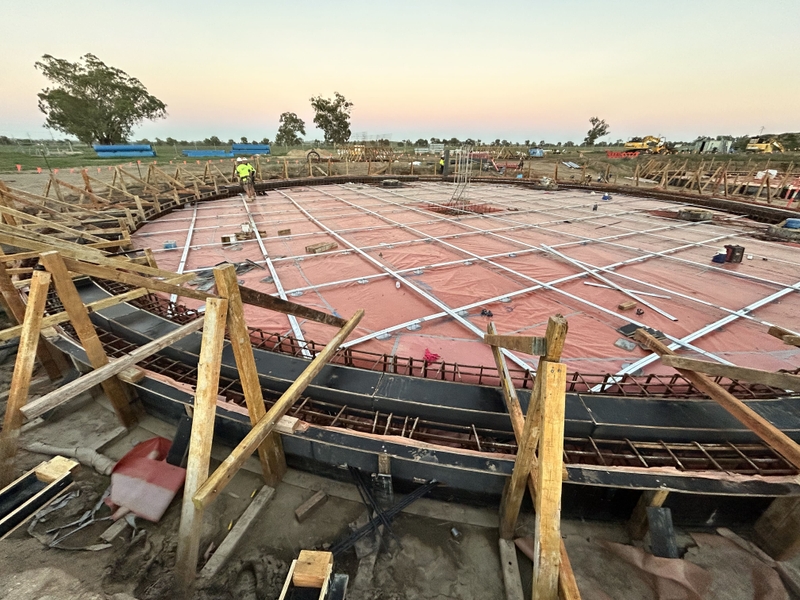

  • Tank base and ring beam – supply and installation per tank of 24 No. 406 flat slab tendons in base slab and 4 No. multi
    strand 706 tendons in the ring beam in each tank

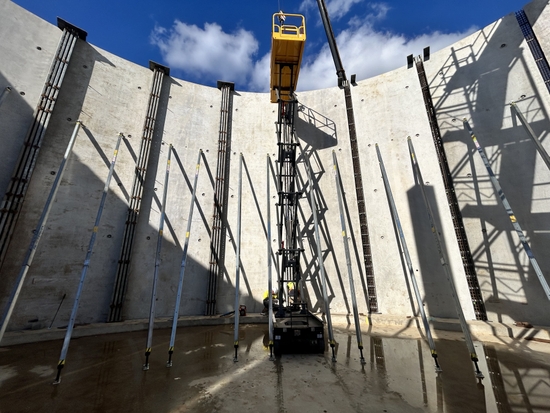

  • Precast wall panels 406 vertical tendons – supply, prefabrication, stressing and grouting of 20 No. standard precast panels and 4 No. stressing panels in each tank
  • Precast wall panels horizontal tendons – supply and installation of strand, stressing and grouting of 18 No. 406 wall ring tendons with the MK4 Z block system

Highlights

  • First precast stitched tank project designed and constructed for Goldenfields Council
  • First use of MK4 system Z blocks in NSW
  • MTI/LTI free
